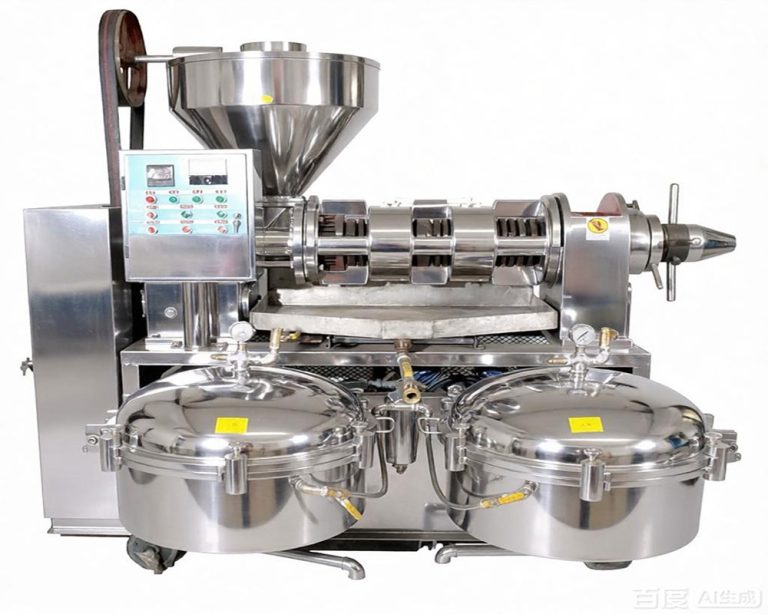

The automatic temperature control precision filtration combined oil press is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung seed, sunflower seed and palm kernel, etc. The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.
The series YZLXQ10(95) automatic temperature control precision filtration combined oil presses are new products developed on the basis of single machine to meet the market demands. The function of auto-heating the press cage has replaced the traditional way by squeezing residue cake, which could shorten the preparation work, reduce the energy consumption and machine’s abrasion. When the squeezing is suspended, the temperature can be maintained by this system. In the meanwhile, this machine was added with filtration function. The crude oil flowing out from the press cage will directly be filtrated by the air pressure filtration machine. The air pressure filtration machine is new filtration equipment. It makes use of the compressed air as filtration force. The ability is strong. It overcome the shortage of the small filtration force of the vacuum filtration machine, can achieve precise result. The structure of this oil press is compact, only requires a small working place and saves labor investment. It is ideal equipment for medium or small oil refinery and enterprise to processing edible oil.
YZLXQ95B and YZLXQ10-2 has strong squeezing force, suitable for continuously hot pressing the oil plants with high oil content, such as rapeseeds.
YZLXQ95C and YZLXQ10-4 is 3-step squeezing model, suitable for users with operation experience and stresses on low oil content in cake.
YZLXQ95-1C is a new model developed on the basis of 95 spiral oil press, according to cotton seeds’ characteristic. Beside of the same functions of other models, it is superior when squeeze cotton seed.
Main technique features:
Below features are based on oil plants with above average quality smoothly and continuously squeezed after good pretreatments, such as screening, husking, flaking and cooking, etc.
Oil Plants | Processing capacity£¨t/24h£© | Oil content of dry cakes£¨£¥£© | Oil yield efficiency £¨£¥£© | Electricity Consumption£¨kW·h/t£© |
Rapeseed | ≥3.5 | ≤7.8 | ≥81 | ≤40 |
Cotton seeds | ≥3.5 | ≤7.3 | ≥76 | – |
Soybean | ≥3.3 | ≤6.8 | ≥66 | ≤56 |
Groundnut | ≥3.5 | ≤6.8 | ≥92 | ≤39 |
Note:
¢Ù It is normal that sometimes the actual results may be a little different from those in the index, for the oil plant’s type, quality and original content may be different in different areas.
¢Ú The processing capacity will decrease if use cold press to press more than one time. The more the squeeze times, the lower the capacity and the more the electricity consumption.
Technical Specification:
| Items | YZLXQ95B (95C,95C-1), YZLXQ10-2£¨-4£© |
| Revolving speed of spiral axis (r/min) | 32-40 |
| Power of main electromotor (kw) | 7.5 |
| Electrical power of filtration machine (kw) | 1.5 |
| Power of temperature controlling (kw) | ≥3.0 |
| Measurement (mm) | 1790*1520*1915 |
| Weight (kg) | 1023 |
