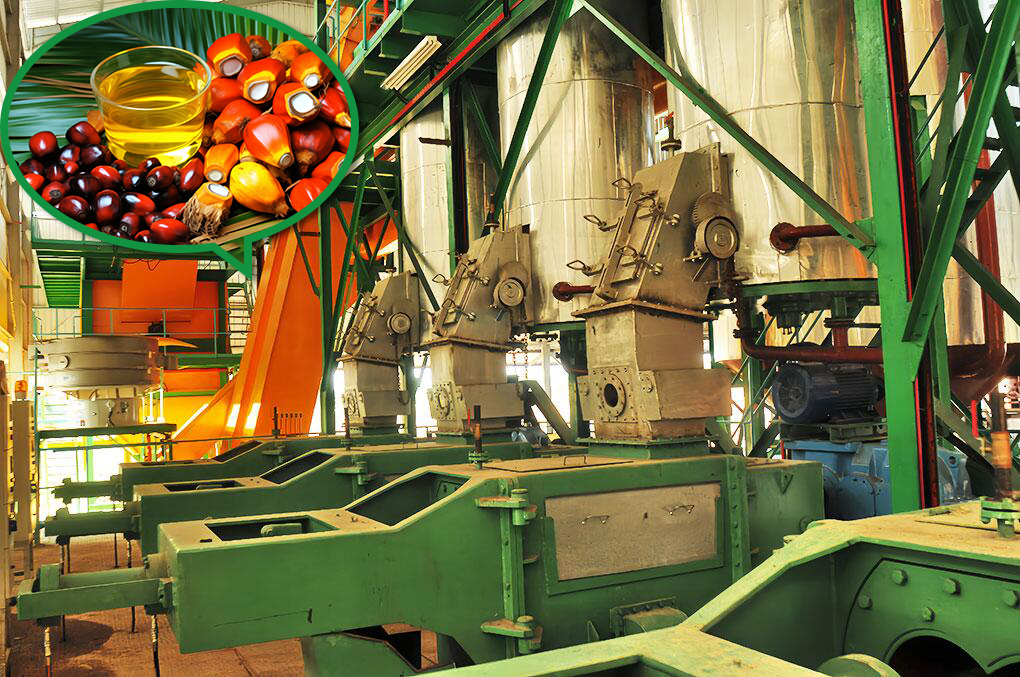

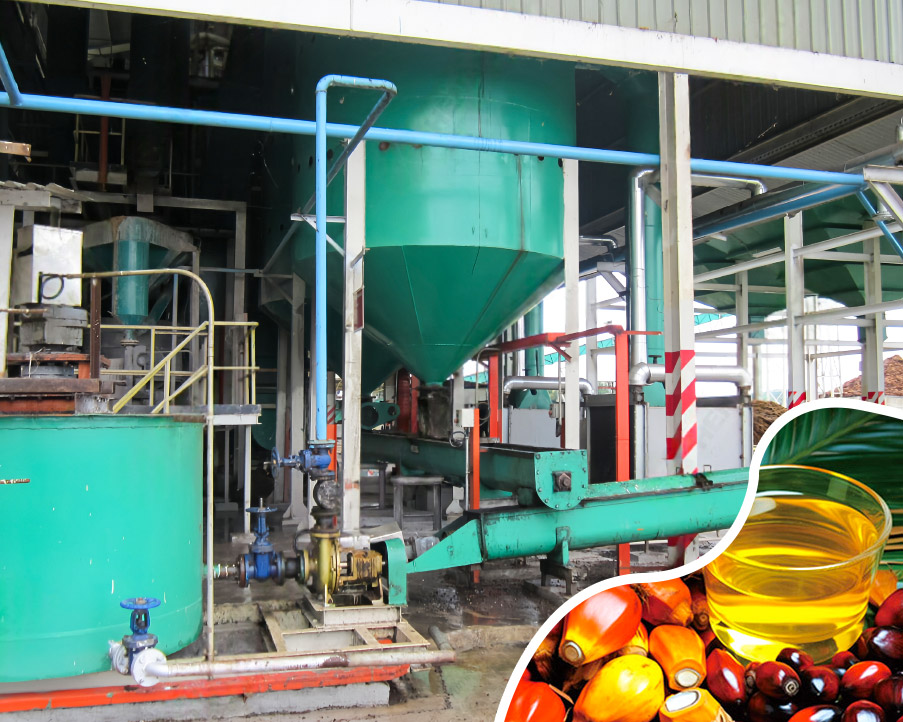

Palm oil production line

Huatai Oil Machinery is a leading company in the field of palm oil and palm kernel oil technology and equipment, we can provide completely set of 5-120tph palm oil production line. Our company offers a range of products and services for the palm oil extraction, palm kernel oil extraction, crude palm oil refining and complete palm oil processing.
Complete palm oil production process in large scale palm oil factory, Fresh fruit bunches (FFB) of oil palm after the fruit is harvested, it is processed in a palm oil mill, where the FFB is sterilized, digested, and pressed to extract palm oil. The extracted oil is then clarified and being sent for crude palm oil refinery plant, fractionation plant. Palm oil after pressing, refining and fractionation can get different melting point products, which are widely used in catering industry, food industry and oil & fat industry.

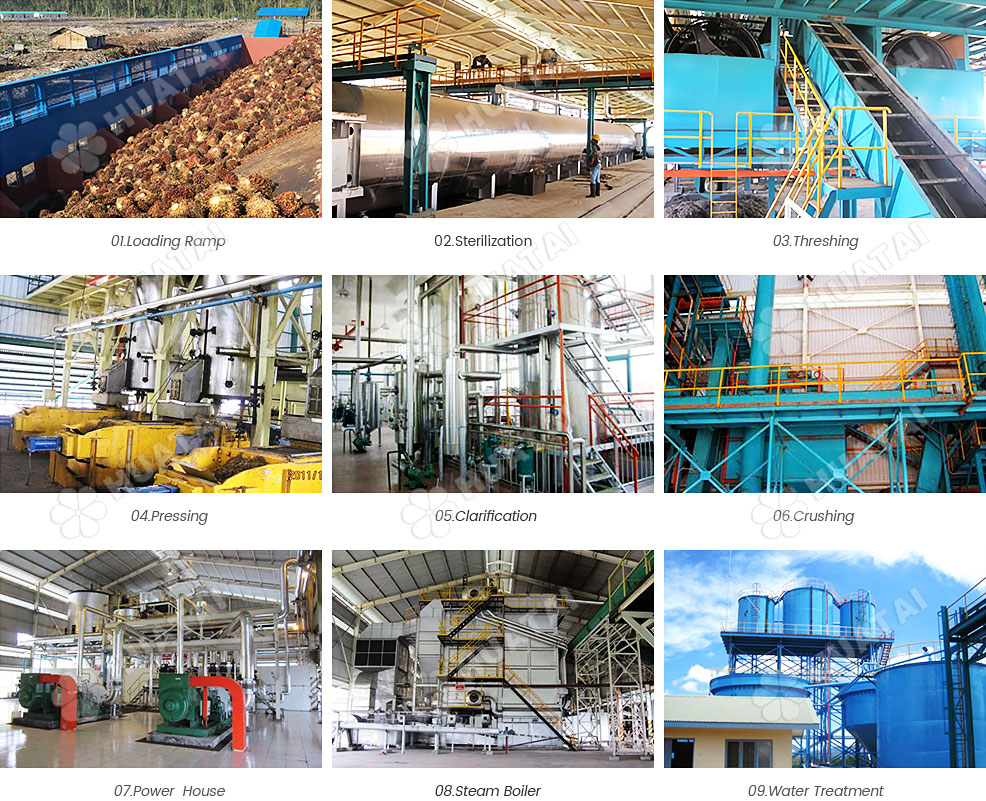

The main steps of palm oil processing

Craft flow of palm oil processing machine

Palm fruit/bunch(FFB) → sterilization → threshing → digesting → clarification → purification →drying → CPO→ refining → bleaching → deodorizing →RBD palm oil → crystallization → fractionation → RBD olein & RBD stearin
Fresh Palm Fruit Reception, It is used for temporary storage and unloading fresh palm fruit bunches from palm plantation.
Palm Bunch Sterilization, with the aid of steam: this loosens the oil-containing fruit from the bunch and inactivates lipid-degrading enzymes as well as micro-organisms that naturally occur in FFB.
Palm Fruit Threshing, bunch stripping which separates the fruit from the bunch stalk and spikelets.  In this process, the byproduct Empty Fruit Bunch (EFB) is produced.
Palm Fruit Digestion, to crush and disrupt the mesocarp (pulp), with the aid of steam.

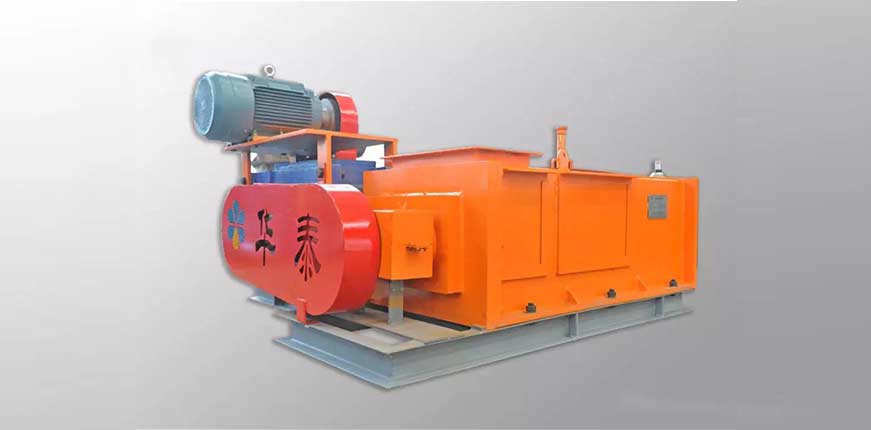

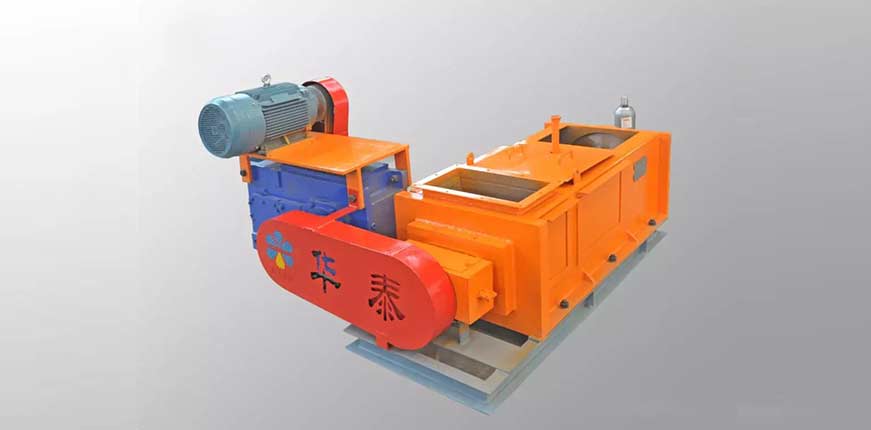

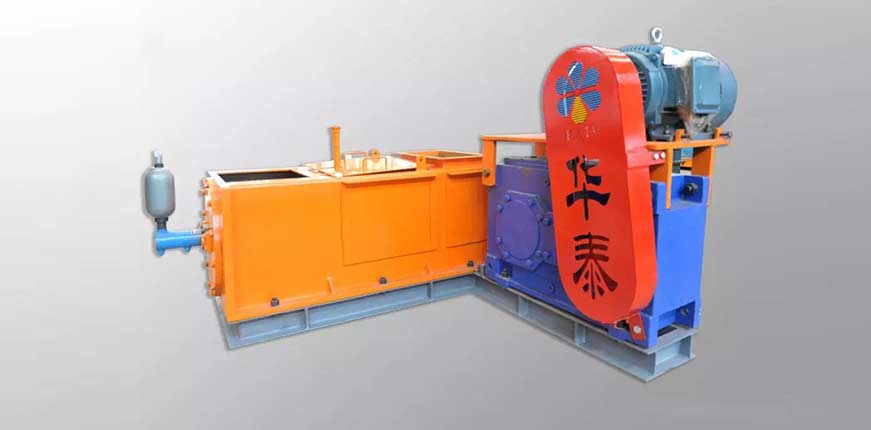

Palm Fruit Oil Pressing of the digested fruit to extract the oil from the mesocarp fibre.  In this process, two fractions are produced: raw oil and a residue, containing palm oil fibres and nuts.
Clarification and drying, The crude palm oil is separated from the mixture of oil, water and solid impurities by clarifying equipment, and other impurities are removed.
Crude Palm Oil Refining, The deacidified palm oil is refined, including bleaching, deodorization, dehydration and other processes to further improve the quality of the palm oil.

Crude Palm oil refining plant

The main steps of palm oil refining

CPO→ refining → bleaching → deodorizing →RBD palm oil → crystallization → fractionation → RBD olein & RBD stearin

Palm Oil Refinery equipment is the important palm oil machinery and equipment to ensure the quality, grade and safety of palm oil in the processing process.Process of palm oil refinery
Degumming and Deacidification Section
Palm oil degumming and deacidification section uses washing method to separate soap residual from mixing oil, providing preparation for next step palm oil refinery process.
Bleaching Section in palm oil refinery
Palm oil bleaching section is mainly used to remove oil pigment, residual soap and metal ions during palm oil milling process.
Deodorization Section in palm oil refinery
Palm oil deodorization section composes of part of crude palm mill plant processing equipment. It plays important part in improving oil quality after crude palm oil process.The palm oil after refining is nearly colorless and transparent under liquid state, and is white under solid state. Besides, according to different user requirements, palm oil can further go through fractionation process to form PFAD, Olean, and Stearine.

Palm oil fractionation plant

The main steps of palm oil fractionation

RBD palm oil → crystallization → fractionation → RBD olein & RBD stearin

Refined Palm Oil Fractionation: after entering the fractionation tank for cooling, the upper layer liquid is 24℃ OLEIN (i.e. 24℃ refined oil), the lowest layer is 44℃ solid refined oil, the output ratio is 24℃: 75%, 44℃: 25% (the highest cost). B. Pressure filtration: equipment is constant temperature plate pressure filter; if user want to production 24℃ oil, the temperature is set at 24℃, add pressure 6 – 10 atmospheres, liquid oil flow out, and solid fats discharged from the plate.
