Main equipment of soybean oil factory

Main equipment of soybean oil factory
Pretreatment equipment: including screening machines, magnetic separators, stone removers, crushers, softening pots, flaking machines, etc. These equipment are used to remove impurities from soybeans, break and soften soybeans, and roll embryos in preparation for oil extraction.
Oil extraction equipment:
Pressing equipment: such as hydraulic press, screw press, etc., used to extract oil through mechanical pressure.
Extraction equipment: There are flat-rotating extractors, ring-type extractors, evaporators, stripping towers, etc., which are used to extract grease with organic solvents and recover the solvent to obtain crude oil.

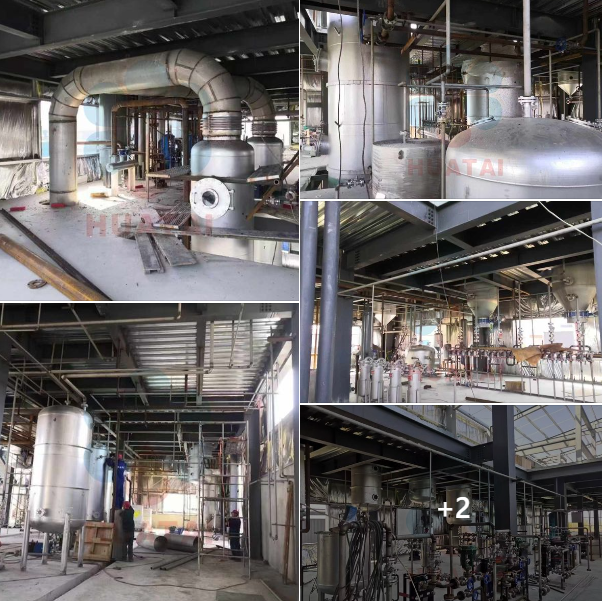

Refining equipment: degumming tanks, deacidification towers, decolorizing tanks, deodorization towers, filters, etc., used to remove phospholipids, free fatty acids, pigments, odor substances and other impurities in crude oil to improve oil quality.
Auxiliary equipment: conveying equipment (such as oil pumps, conveyor belts, bucket elevators, etc.) are used to transport soybeans, soybean meal and oil between various production links; heating equipment (such as thermal oil furnaces) provides heat for the processing process; vacuum equipment ( Such as vacuum pumps) are used to create a vacuum environment for decolorization, deodorization and other processes; storage equipment (such as oil tanks, silos) are used to store raw materials, intermediate products and finished products.
Quality control and management of soybean oil factory
Quality standards: Soybean oil factories need to follow national and industry quality standards. These standards stipulate the quality indicators of soybean oil, including color, odor, taste, transparency, acid value, peroxide value, unsaponifiable matter, etc.
Quality testing: During the production process, quality testing is required on raw soybeans, intermediate products (such as crude oil) and finished soybean oil. Test items include oil content, moisture, impurities, acid value, peroxide value, color, etc. Detection methods include chemical analysis, physical detection (such as refractive index, density measurement) and instrumental analysis (such as gas chromatography to detect fatty acid composition), etc.
Quality management system: Establish a complete quality management system, including raw material procurement management, production process control, product inspection and quality traceability. For example, in the raw material procurement process, only high-quality soybean suppliers are selected and required to provide quality inspection reports; during the production process, processing is carried out in strict accordance with operating procedures and key process parameters are recorded; after the product passes the inspection, each batch of products is Establish quality files to trace product quality issues.

Henan Huatai supply complete soybean oil mill plant, soybean oil extraction plant, crude soybean oil refining, 10-3000tpd soy oil plant supplier and manufacturer. any need please email to info05@cnoilmachine.com
