Peanut/Groundnut Oil Production Line

We are able to undertake peanut oil production line with the capacity of 10-3000TPD to meet different customers’ demands.

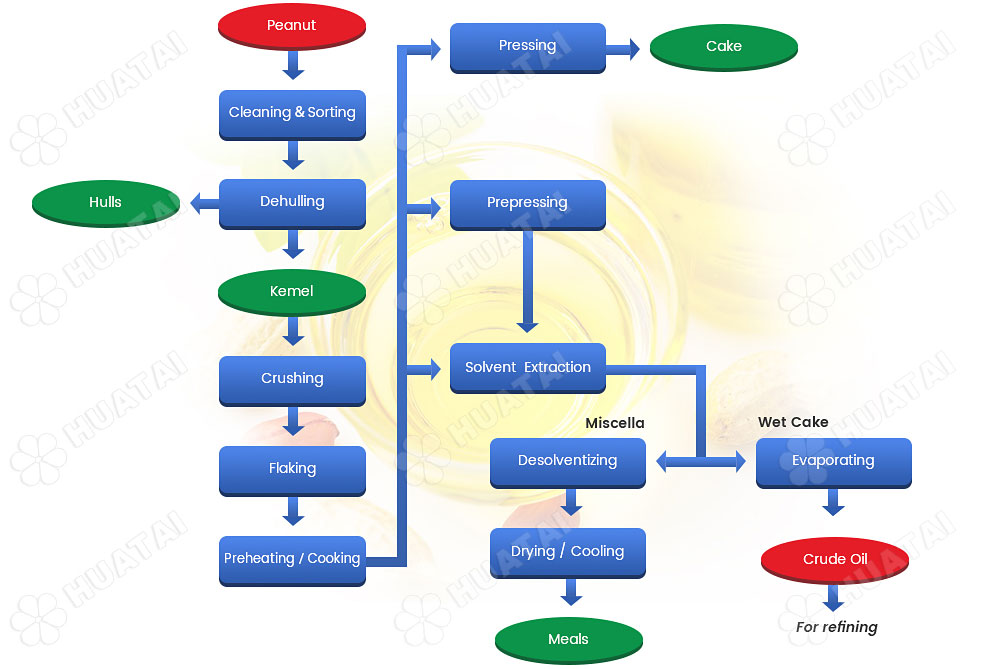

Peanut oil pretreatment plant

Peanut→cleaning→stones removal→magnetic selection→crushing→softening→flaking→drying→to solvent extraction

Peanut oil solvent extraction plant

The peanut oil solvent extraction plant is part of peanut oil production line which is designed to extract oil directly from pressed peanut cake. After peanut oil solvent extraction plant, the residual oil rate in peanut cake is less than 1%.

Peanut cake extraction process steps

Pressed cake→Solvent extraction system→D.T.D.C system→Condenser system→Recovery system→Crude peanut oil

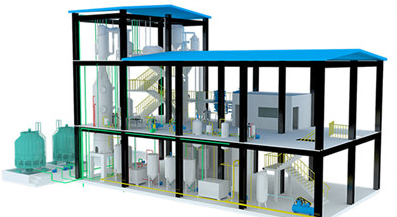

Peanut oil refinery plant

After peanut oil solvent extraction process, there are some impurities in crude peanut oil. To get the higher quality final product oil, the crude peanut oil should be refined by oil refinery plant. Peanut oil refinery plant includes a series processing process such as degumming, neutralization, bleaching, deodorization and so on. In general there are two methods of peanut oil refining process, one is physical refining and the other is chemical refining. However, no matter what kinds of peanut oil refining methods, they are all done with the help of various oil processing equipment and machinery.

Crude peanut oil-degumming–deacidifaction–decolorization–deodorization–refined peanutoil.

And there are three types of the refinery equipment: batch type, semi-continuous type and full-continuous type.

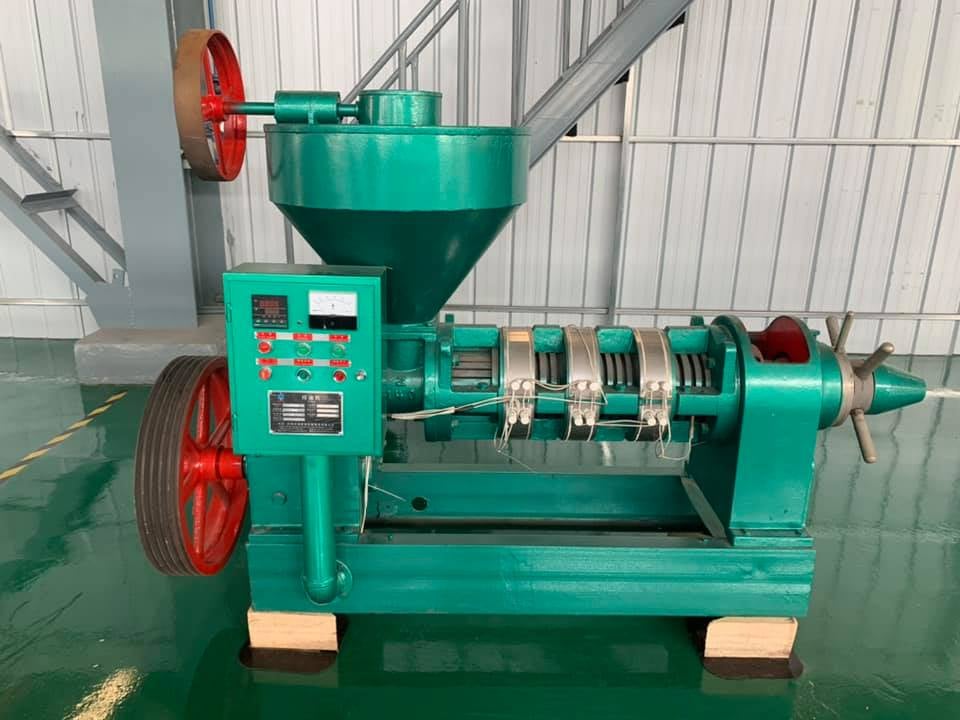

Henan Huatai Peanut oil press machine features

1. The world’s most advanced oil extraction technologies. The traditional oil extraction are one-time pressing, leading to the oil yield is not high, waste oilseeds, henan huatai use pre-press – oil extraction technology to reduce the residual oil rate of oil cake and improve the quality of peanut meals.

2. The unique environmental initiatives. Oil extraction systems, Henan Huatai unique exhaust absorption system, absorbing good effect, in line with environmental standards required in many countries, to solve customer worries.

3. Reasonable advanced energy-saving design. solvent recovery system in oil extractor are provided, the solvent can be repeatedly used, heat energy also can be repeatedly used, saving the amount of solvent and steam, for customers to save costs.
