Oilseeds Pretreatment Equipment
Oilseeds Pretreatment Equipment
The best production technology of flavor oil is adopting physical pressing method. Flavor oil is made through sorting, steam-cooking, physical pressing, freezing, sedimentation and filtration.
Processing capacity: 10-1000T/D
Oilseeds range: peanut, mustard, rapeseed, soybean, flaxseed, sesame, Niger seed.
Most of the strong flavor oil are cold pressed oil, as an expert in the oil equipment industry, we can make all kind of the oil equipment.

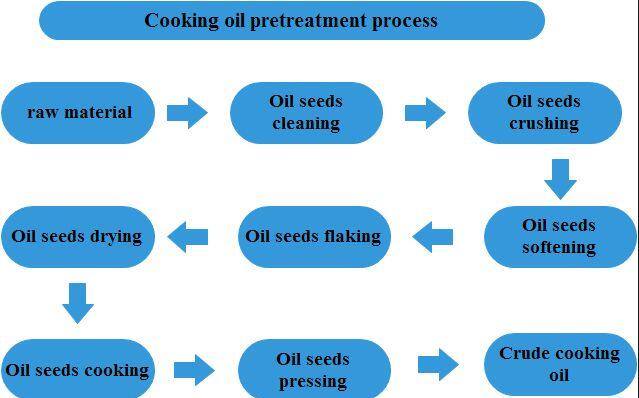

Process of cooking oil pretreatment
Technical Specifications
Engineered for efficiency, built for performance.
Working Principle

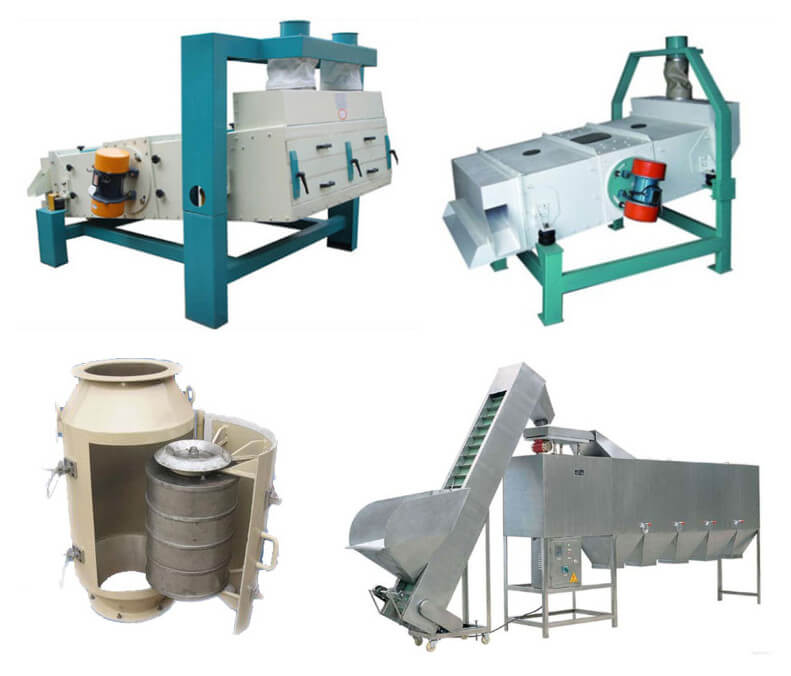

Cleaning & destoning
Vibrating screen, magnet and destoner remove impurities, stones and metal to >99% purity.
Crushing
Roller crusher breaks seeds to uniform size for even flaking.
Softening
Conditioning cylinder warms and softens kernels to the right plasticity.
Flaking
Flaking rolls form thin, uniform flakes to shorten the oil pathway.
Cooking / conditioning
Stacked cooker adjusts moisture and temperature to the optimal pre-extraction state.
Extruding / pre-pressing
Extruder gelatinizes flakes (for extraction) or pre-press recovers part of the oil from high-oil seeds.
Why Choose This Equipment
High cleaning efficiency
Multi-stage screening lifts purity above 99%.
Uniform flaking
Precise roll-gap control ensures consistent flake thickness.
Energy-saving conditioner
Indirect heating cuts steam consumption.
Automated control
PLC and sensors enable stable, unattended operation.
Low residual
Optimized prep maximizes extractable oil.
Applicable Materials
Soybean
Standard prep line for crushing plants.
Rapeseed / Canola
Low-temperature prep preserves meal protein.
Sunflower
Gentle conditioning for high oil yield.
Corn germ
Extrusion prep for high-oil germ.
Rice bran
Stabilizing and extrusion before extraction.
Cottonseed / Peanut
Dehulling and flaking for oil plants.
Frequently Asked Questions
What capacity do you offer?
Pretreatment lines from 30 TPD up to 3,000 TPD, fully customized.
Can one line handle multiple seeds?
Yes, with adjustable gaps and changeable screens for recipe switchover.
Do you provide turnkey service?
Yes — design, equipment, installation, commissioning and training.
