Our palm oil mill plant is designed for African conditions, feature a combination of imported special purpose machinery from Malaysia, together with local inputs such as buildings, steelworks, structures, tanks, vessels, etc. We have enough experience and advanced palm oil mill machinery for making palm oil, which lead the technology in palm oil processing field.

Palm oil mill capacity: 5-120T/H

Leading palm oil mill manufacturer in China. We supply complete palm oil mill plants with capacities rages from 5-120T/H, including small palm oil plant, palm oil pressing plant, palm kernel expeller, palm oil extraction line, palm oil refining plant, palm oil fractionation plant, etc.

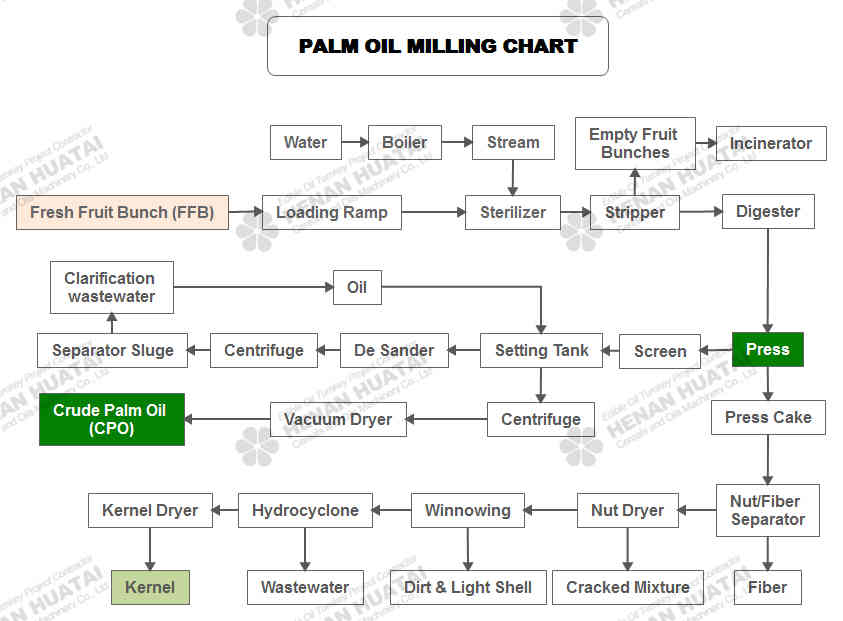

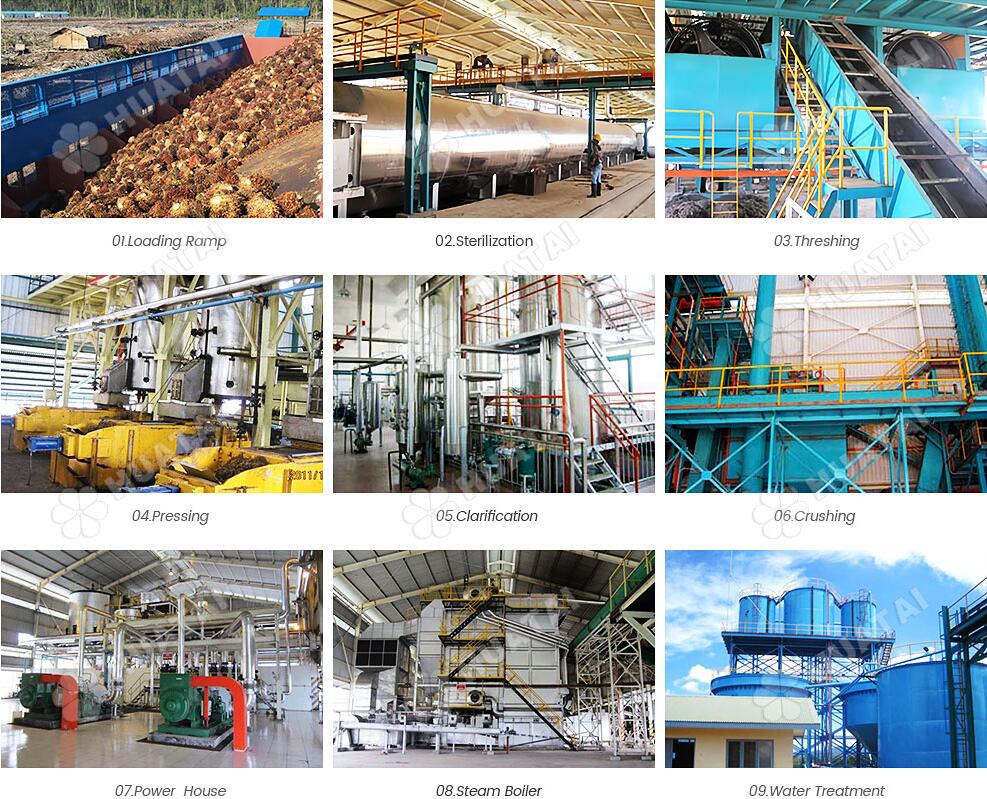

1.Palm oil mil process of bunch reception(FFB): as palm fruit unloading, cleaning, storage platform during palm oil mill processing, all hydraulic segmented discharge.

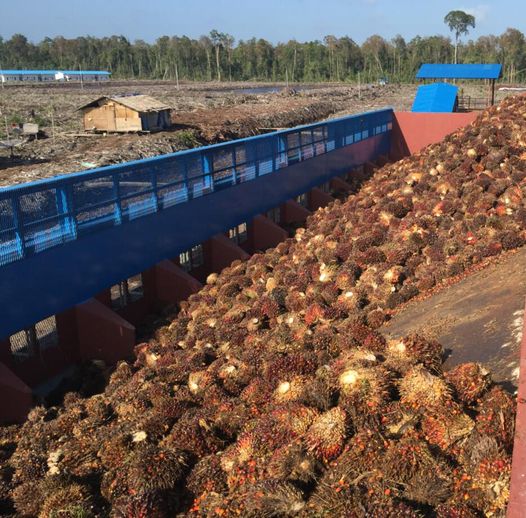

Palm oil mill fresh fruit reception(FFB)

2.Palm oil mil process of sterilization: the use of high temperature to cook soft fruit bunches and sterilization, easy to separate fruit bunches, soft fruit, increasing the humidity of the fruit, it is easy to take the oil but also to make verification easier separation of the core-shell, preventing enzymatic decomposition, to avoid elevated levels of free fatty acids.

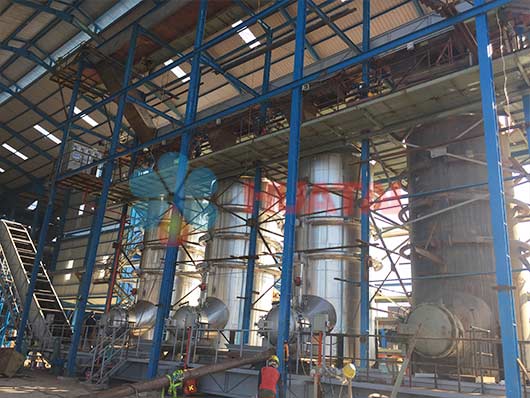

Sterilization station

3.Palm oil mil process of threshing: strong vibrations through the fruit from fruit bunches separated.

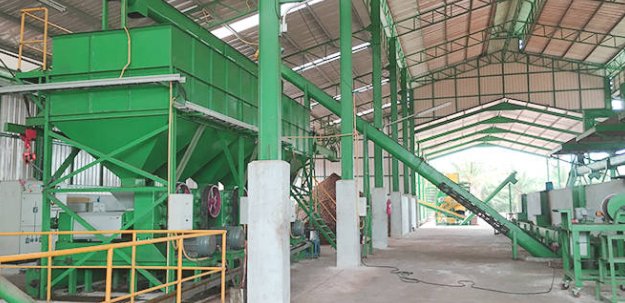

Threshing station

4.Mashing. Mixing tank will mash and crush palm fruit until broken after fruit threshing.

5.Palm oil mill process of pressing: There is also the steam heater in masher. The purpose of mashing is to separate the pulp and nut and crush the palm pulp. At the same time, the steam is used to cook the palm fruit and broke the cell of pulp. Because of cooking, sterilizing, threshing and mashing made the pulp soft and damage pulp cell structure, the palm pulp becomes soft and cell is broken. Then it is sent to continuous screw press. After pressing, oil palm fruit is divided into two parts: the mixture of oil, water and solid impurities, and the press cake (fiber and nut).The pulp stone separation obtained CPO and stone, press machine adopts the double screw helix continuous discharge and hydraulic, greatly improving production efficiency.

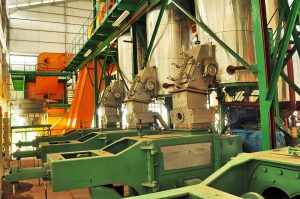

Pressing station

6.Fiber separation. The extruded fiber pie enters air separation system after crushed to get separation of fibers and cores.

7.Separation. Crusher divided fruit core into palm kernel and shell after separated with fiber. Air separation and washing systems separate palm kernels and shells. Shells enters boiler system as fuel, and palm kernels are storage after drying.

8.Palm oil mil process of clarification. Machine-pressed crude oil first diluted with water washing, through settlement and filtration, the fiber material removed from the oil, and then carry out continuous settlement, the whole divided into two parts: oil and sediment. The oil and the sludge taken out separated (by 90% pure oil) is taken out of the oil containing 45%-55% of the water, sludge and other things.
Palm oil mil process of purification: oil purification process to improve palm oil purity.
Palm oil mil process of drying: continuous Vacuum drier with the oil out of the water, the water can be reduced to 0.1%.

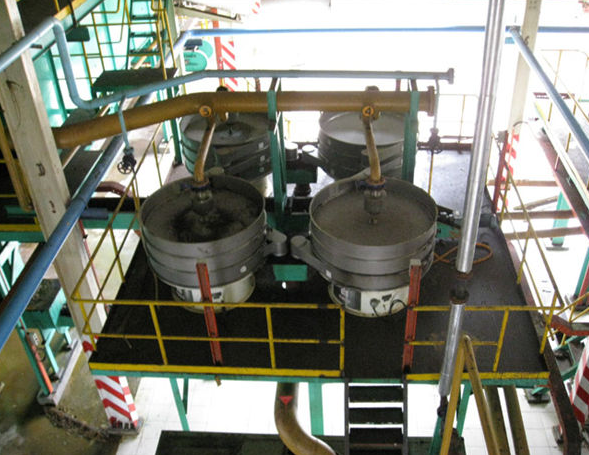

Palm oil mill clarification

9.Palm oil mil process of steam boiler: has a strong output, high thermal efficiency, stable and reliable operation, overload capacity, fuel, wide applicability, environmental protection and many other advantages. Water treatment: after setting, filtration, dosing and other processes to ensure that the water quality, but also to ensure oil quality.

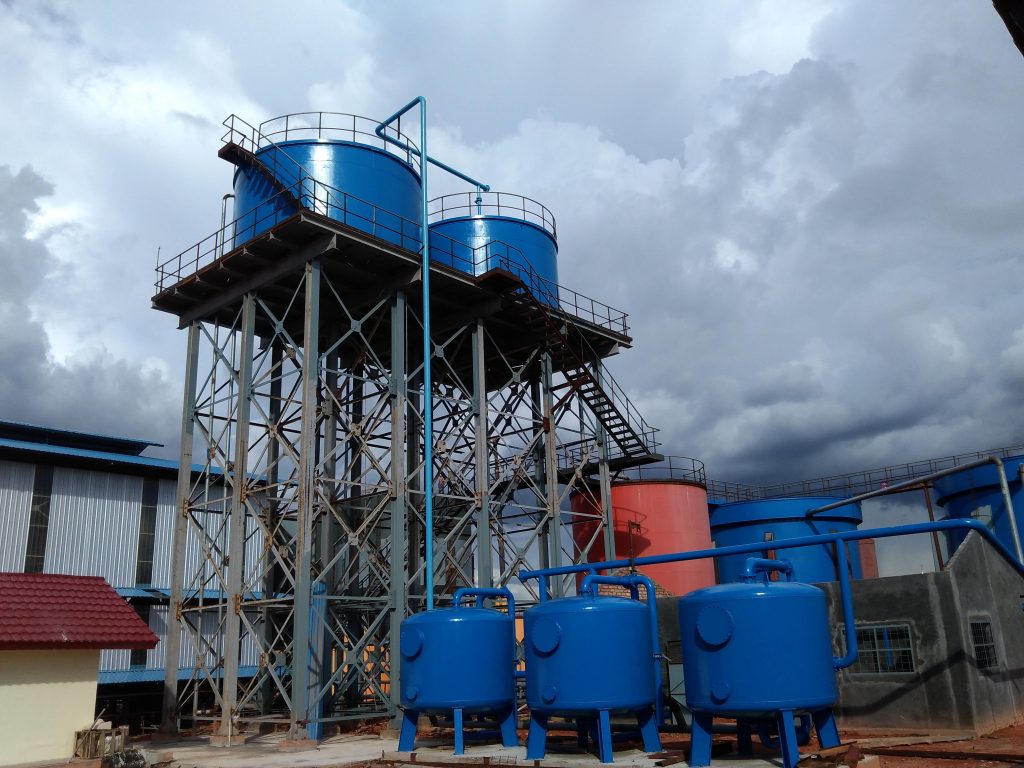

10.Palm oil mil process of waste water treatment

The waster oil produced in the processing not only contain the oil, but also contain the COD and BOD, it is the high concentrated organic wastewater, so it has to be treated before discharging out of the factory. The harmful matter content in the waste water as follows:

COD 5000mg/l

BOD 15000mg/l

Suspended solid 7000mg/l

Plant Oils 300mg/l

PH 4～5

Temperature 80～90℃
