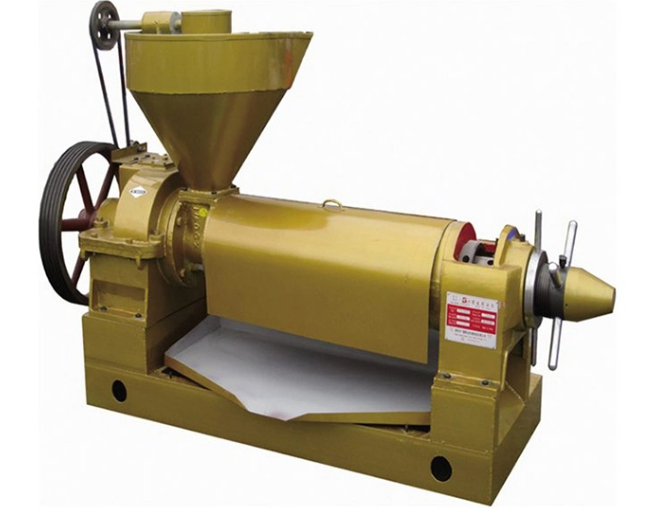

YZYX120 spiral oil press
Spiral oil press
The series YZYX120 spiral oil press produced by our company is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.The product conforms to the “Technology Standard of Agricultural Spiral Oil Press” under JB/T9793·1-1999 of the People’s Republic of China.YZYX120 is the basic 2-step-squeezing spiral oil press. YZYX120-8 is 3-step-squeezing spiral oil press, which has larger press chest cavity, suitable for the users who have operating experience and stress on the oil content of dry cakes. YZYX120-9 is 4-step-squeezing spiral oil press with lengthened press chest.
Main Features
Below features are based on oil plants with above average quality smoothly and continuously squeezed after good pretreatments, such as screening, husking, flaking and cooking, etc.
| Oil Plants | Processing
Capacity (t/24h) |
Oil content of
Dry cakes (%) |
Oil yield efficiency (%) | Electric power consumption (kw.h/t) |
| Rapeseed | ≥6.0 | ≤8.0 | ≥80 | ≤35 |
| Cotton seeds | ≥6.0 | ≤7.5 | ≥75 | ≤55 |
| Soybean | ≥5.0 | ≤7.0 | ≥65 | ≤52 |
| Peanut | ≥6.0 | ≤8.0 | ≥91 | ≤35 |
Note:
It is normal that sometimes the actual results may be a little different from those in the index, for the oil plant’s type, quality and original content may be different in different areas.
The day capacity (t/d) is based on using hot way to squeeze one time. The more the squeeze times are, the lower the date capacity is.
Technical Specification
| Revolving speed of spiral axis(r/min) | 32-40 |
| Power required£¨kw£© | 11or15 |
| Measurement(mm) | 1860 x 622 x 1275 |
| Weight(kg) | 680 |
Note:
This weight is without electro-motor’s weight.
Technical Specifications
Engineered for efficiency, built for performance.
Working Principle
Feeding
Prepared seeds enter the press cage.
Squeezing
Spiral shaft compresses material; oil drains through cage bars.
3/4-step models
-8 (3-step, larger cavity), -9 (4-step, lengthened) for lower cake oil.
Discharge
Dry cake discharges; crude oil collected.
Why Choose This Equipment
Small investment
High capacity, strong compatibility, high efficiency.
Auto-heating (optional)
Replaces traditional residue-cake preheat.
Low cake oil
3/4-step designs lower residual oil in dry cake.
Durable
Low abrasion, long service life.
Applicable Materials
Oilseeds
Rapeseed, cottonseed, soybean, shelled peanut, flax, tung, sunflower, palm kernel.
Frequently Asked Questions
Capacity?
Day capacity (t/24h) based on hot pressing once; cold multi-press lowers it.
Power?
11 or 15 kW main motor.
Models?
YZYX120-8 (3-step) and YZYX120-9 (4-step).
