Product Overview

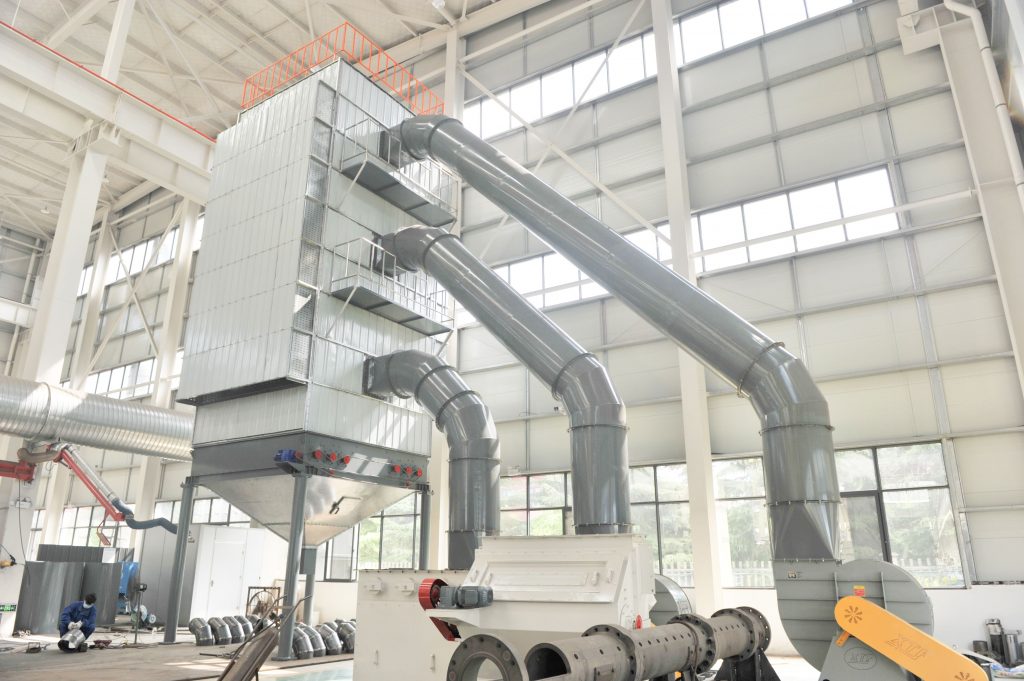

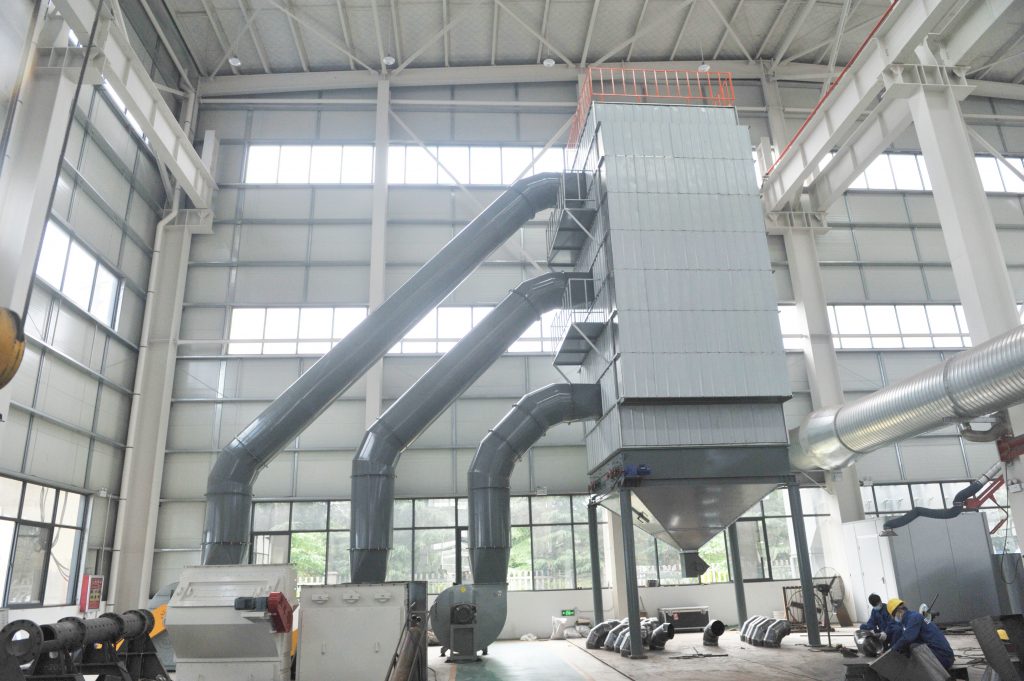

Grain Drying Tower

Introduction of Huatai 300-ton grain drying tower

The 300-ton grain drying tower is a commonly used grain drying equipment. It evaporates the moisture in the grain through the contact between hot air and grain, thereby achieving the drying effect. Its working principle mainly includes three parts: the generation, transmission and drying process of hot air.

The core structure of Huatai’s 300-ton grain drying tower

1. Hot air blower: as a heat source providing system, it generates high-temperature hot air
2. Hot air distribution system: evenly distributes the hot air generated by the hot air blower into the drying tower to ensure that each grain can be fully dried.
3. Multi-layer drying tower : composed of metal plates, the grain falls from top to bottom in the tower layer by layer, and is fully in contact with the hot air.
4. Dehumidification system: including dehumidification fans and dehumidification pipes, responsible for discharging the evaporated moisture and humid hot air from the grain out of the tower.
5. Cleaning and dust removal device: prevent impurities from entering the system, while recovering dust in the hot air to keep the environment clean.
6. Automatic control system: integrates the monitoring and adjustment of parameters such as temperature, humidity, and air volume to achieve intelligent management of the drying process.

Working principle of grain drying tower

The working principle of grain drying tower is based on the principles of heat transfer and aerodynamics. The high-temperature hot air generated by the hot air system enters the tower through the hot air distribution system, forming a high-temperature and high-humidity environment. The wet grain enters from the top of the tower, and is fully in contact with the hot air during the falling process. The surface and internal moisture evaporate to form hot and humid air, which is then discharged out of the tower by the dehumidification system. During the drying process, the automatic control system adjusts the hot air temperature, air volume and the residence time of the grain in the tower according to the preset parameters to achieve the best drying effect.

Main uses of grain drying tower

· Rapidly reduce the moisture content of grain to the safe storage standard and reduce the risk of mildew.
· Improve the quality of grain and maintain the nutritional content and color of grain.
· Suitable for grain processing needs of different scales, from small farms to large grain processing companies.

Performance characteristics of grain drying tower

· High efficiency and energy saving: using advanced heat recovery technology and optimized hot air circulation system to greatly reduce energy consumption and improve drying efficiency.
·Uniform drying: The multi-layer tower design combined with the intelligent air volume distribution system ensures that each grain can be dried evenly to avoid local overheating or over-humidification.
·Intelligent control: The integrated advanced automatic control system can monitor and adjust key parameters such as temperature, humidity, and air volume in real time to achieve precise control of the drying process. Environmental protection and low noise: The use of low-noise fans and environmentally friendly fuels reduces noise pollution and harmful gas emissions, and meets national environmental protection standards.
·Strong adaptability: The drying process can be adjusted according to different grain types, moisture content and climatic conditions to meet the personalized needs of different users.
·Environmental protection and low noise system.
