In the tough world of the edible oil business, setting up a smooth-running coconut oil production line means dealing with tricky technical issues. Many company owners run into big problems when starting a coconut oil mill. These issues include uneven raw material flow, constant machine jams, and too much oil left in the leftover cake. Such problems often lead to expensive stoppages and lower oil standards. As a result, investors struggle to get the returns they hope for.
Huatai Group focuses on spotting these issues right at the planning stage. They offer custom fixes that turn tough copra into top-notch edible oil. This happens through a well-tuned coconut oil manufacturing process.
Solving Pretreatment Challenges in the Coconut Oil Mill
Copra has special traits, such as big dried pieces with lots of oil and fiber. This demands careful handling that sets it apart from usual oilseeds. If you ignore these traits, it often causes breakdowns in the coconut oil manufacturing process. In fact, this is the top reason for failures in operations.
Optimized Conveying and Cleaning
Since copra pieces are bulky and uneven, regular lifters face strong pushback during feeding. Huatai Group uses custom belt systems in the coconut oil production line. These have a slope angle that stays under 30° to stop materials from slipping back. To shield later machines, we add strong magnetic removers for iron bits. This step also ensures the coconut oil cake stays pure.
Precision Crushing and Flaking
Good breaking is key to pulling out oil. We use hammer breakers with evenly placed crossing hammers and bigger mesh openings to deal with copra’s hardness. A smart addition to our coconut oil manufacturing process is the view panels on the input and output tubes. Operators can check these for jams caused by too much fine dust. Moreover, our flaking machines set the roll gap at 3 to 4.5 mm. This setup stops the usual trouble where oil seeps to the top and makes material stick to the rolls. That sticking often halts work in a basic coconut oil mill.
Advanced Extraction and Refining Systems
After preparing the material, the coconut oil manufacturing process moves to the vital steps of squeezing and purifying.
Efficient Cooking and Pressing

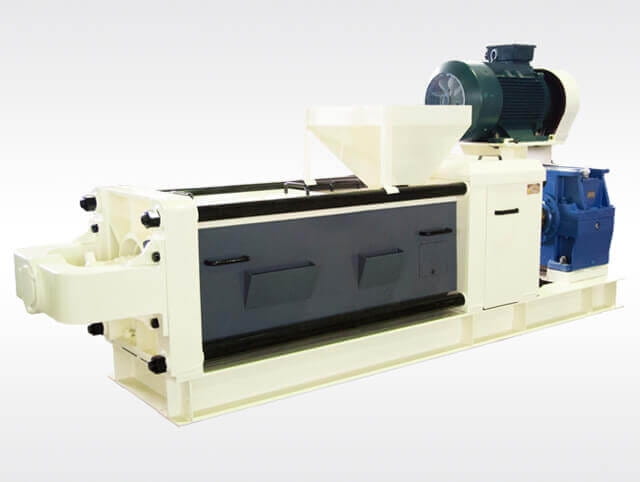

In the warming phase, steady mixing might let oil leak along the shafts. This wastes product and dirties the work area. Huatai Group fixes this by fine-tuning mix times and cleaning input ports often to avoid pile-ups. For the squeezing part, copra’s thick nature needs exact tweaks to the squeeze bar gaps. Our coconut oil production line has custom screw squeezers. In them, the space narrows just right to avoid empty feeds or stuck cakes. Thus, it boosts oil output to the max.
Superior Oil Clarification and Refining

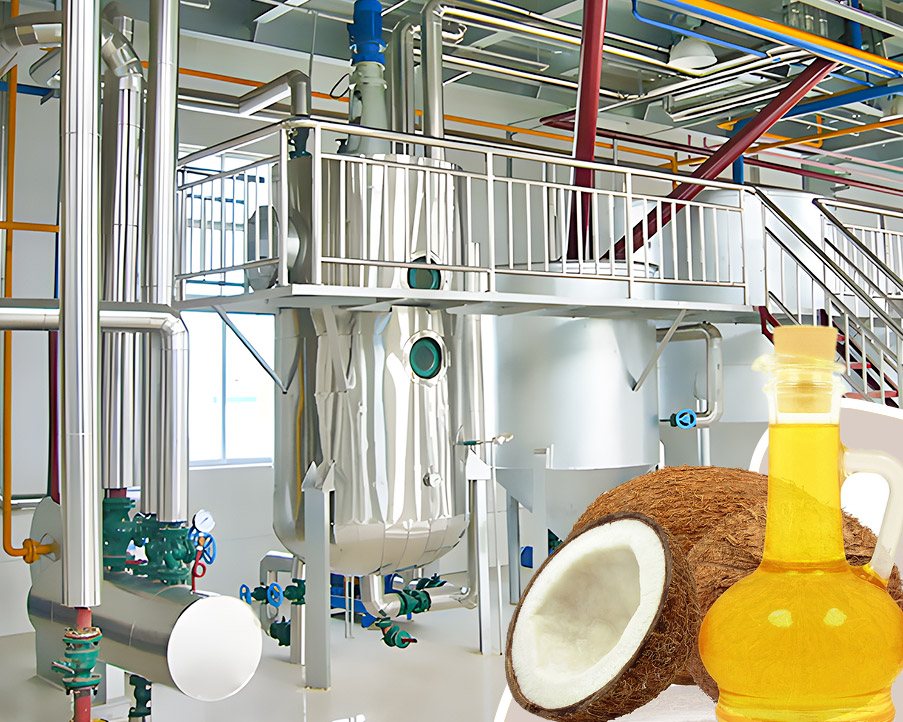

Raw coconut oil usually holds plenty of fiber scraps. We built an oil clearing step early in the coconut oil mill flow. There, scraps go back to the squeezer for another go, which eases the load on end filters. For owners aiming at high-end markets, our purifying area covers removing gums, acids, colors, and smells. We suggest physical purifying for coconut oil since it keeps natural goodies like lauric acid. At the same time, it creates a clear product that fits global safety rules.
Technical Highlights: Efficiency and Automation
The current coconut oil production line from Huatai Group stands out for its clever tech features.
- Intelligent PLC Control:Our setups use Siemens or Mitsubishi PLC boxes for complete auto operation. This covers far-off watching, error checks, and auto alerts, which cut down on worker effort and stop mistakes.
- Energy Conservation:Through heat swap tech and reused warmth in purifying and boiling areas, we lower steam and electricity use per ton of oil.
- Wear-Resistant Design:Key parts in our coconut oil mill gear, like squeeze screws and break hammers, come from tough, lasting materials. They lengthen use time and trim upkeep expenses.
Application Success: 150TPD Project in Thailand
A clear sign of our skills is the 150TPD copra squeezing and 50TPD physical purifying job done for Ampol Foods in Thailand. As a top maker of healthy eats, the buyer needed a coconut oil production line that kept the oil’s true health benefits. They also wanted it to meet strict clarity needs.
Huatai Group created a non-stop physical purifying line that skipped strong chemicals. By adding our special flaking and squeezing methods, the plant managed Thailand’s high-fiber copra well. It avoided the common jams in standard mills. The work led to finished oil that went beyond what the buyer expected in quality and amount. This strengthened their spot as a frontrunner in healthy coconut goods.
Partner with Huatai Group
Creating a money-making coconut oil mill takes more than gear. It needs an engineering ally who gets the details of the coconut oil manufacturing process. From advice on tech to handling farm logistics and setting up a ready-to-run coconut oil production line, Huatai Group commits to your ongoing wins.
Contact Huatai Group to receive a free customized professional plan for your project.
FAQ
Q: Why are belt conveyors preferred over elevators for copra?
A: Copra blocks are large and irregular; belt conveyors provide smoother feeding and prevent the mechanical blockages common in traditional elevators.
Q: How does Huatai Group prevent oil loss during the cooking stage?
A: We reduce material powdering and optimize stirring times to prevent oil from dripping down the axes, keeping the workshop clean and maximizing yield.
Q: Can your coconut oil production line handle other oilseeds?
A: Yes, our equipment is versatile. With minor adjustments, the same line can process peanuts, sunflower seeds, or palm kernels.
Q: What is the benefit of your patented pressing screw?
A: Our intelligent press uses wear-resistant materials that last 1.5 times longer than many imported alternatives, reducing downtime in the coconut oil mill.
Q: Does Huatai Group provide on-site installation?
A: Yes, we provide full EPC turnkey services, including site design, equipment manufacturing, on-site installation, and staff training.
