Product Overview

Palm Kernel Oil Expeller

Palm Kernel Oil Expeller

Efficient Palm Kernel Oil Extraction for Commercial Processing

Looking for a reliable palm kernel oil expeller for your oil processing project?

Our palm kernel oil expeller is designed for the mechanical extraction of oil from palm kernels, providing a practical solution for commercial palm kernel oil production. The machine can be integrated into a complete palm kernel oil processing line, from kernel preparation and conditioning to pressing, oil clarification and storage.

Whether you are planning a new palm kernel oil mill, expanding an existing processing plant, or upgrading your current pressing equipment, we can provide an oil extraction solution based on your raw material, required capacity and production objectives.

Get a Customized Palm Kernel Oil Solution → Contact Our Engineers

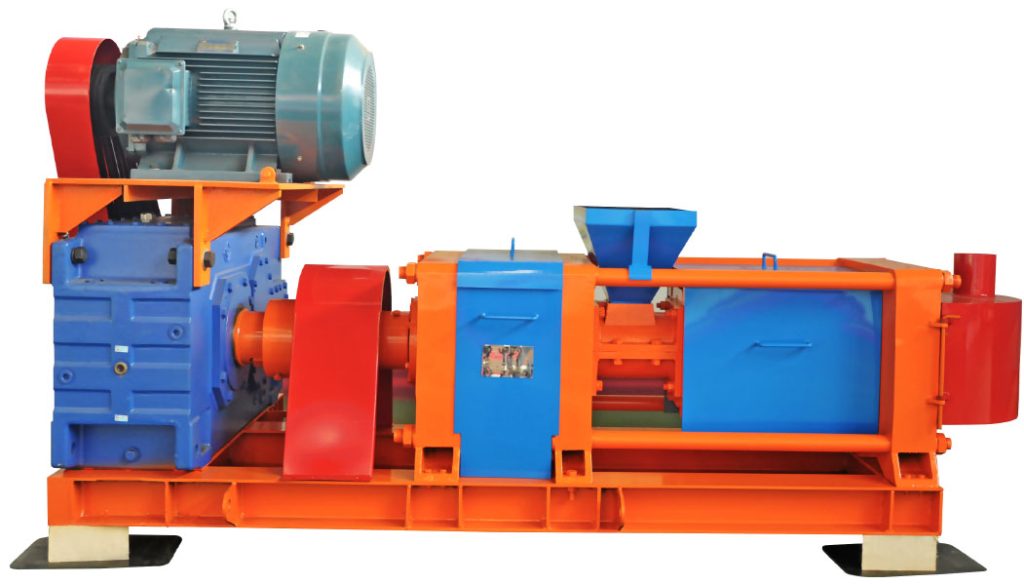

What Is a Palm Kernel Oil Expeller?

A palm kernel oil expeller is an industrial screw press used to mechanically extract oil from palm kernels.

During pressing, prepared palm kernels are continuously fed into the pressing chamber. Mechanical pressure separates the oil from the solid kernel material, producing crude palm kernel oil (CPKO) and palm kernel cake.

Compared with purchasing a standalone small oil press, an industrial expeller can be engineered as part of a complete processing system, allowing the pressing section to work together with kernel preparation, oil filtration, storage and other downstream equipment.

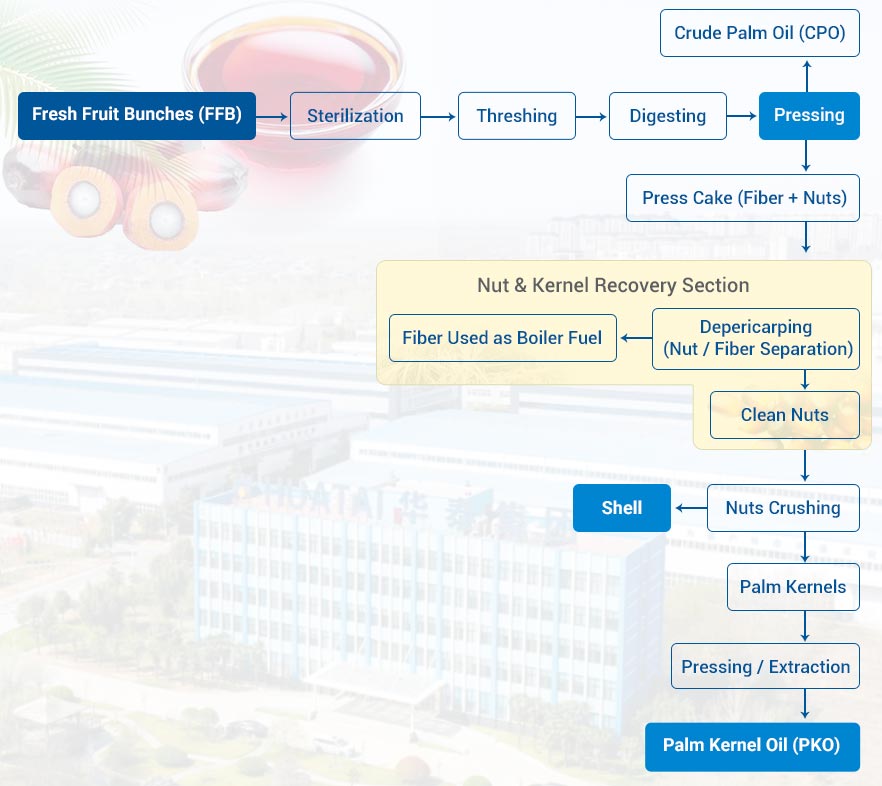

Typical Palm Kernel Oil Extraction Process

Palm Kernel → Cleaning → Size Reduction → Flaking → Conditioning → Screw Pressing → Oil Clarification → Filtration → Storage

The exact configuration can be adjusted according to the characteristics of the palm kernels and the requirements of the processing plant.

Palm Kernel Oil Expeller Working Process

1. Palm Kernel Cleaning

Before pressing, palm kernels should be properly cleaned to remove stones, metal particles, dust and other foreign materials.

Effective cleaning helps protect downstream equipment and provides more stable operating conditions for the pressing section.

2. Kernel Size Reduction

The kernels can be reduced in size before further preparation.

Breaking the kernels into smaller pieces increases the surface area and facilitates subsequent flaking and conditioning.

3. Flaking

Flaking helps rupture the cell structure of the kernel and prepares the material for more effective oil release during pressing.

The flaking process is particularly important when designing a continuous commercial palm kernel oil extraction plant.

4. Conditioning

Depending on the process design, thermal or steam conditioning can be used to adjust moisture and temperature before pressing.

Proper conditioning can help improve the consistency of the pressing operation and facilitate oil separation.

5. Screw Pressing

The prepared palm kernels enter the palm kernel oil expeller continuously.

Inside the pressing chamber, mechanical pressure is generated by the rotating screw shaft. Oil is released from the kernel material while the remaining solid material is discharged as palm kernel cake.

6. Oil Clarification and Filtration

Freshly pressed crude palm kernel oil normally contains fine solid particles and other impurities.

The crude oil can therefore pass through suitable clarification and filtration equipment before entering the storage tank or subsequent refining process.

Key Features of Our Palm Kernel Oil Expeller

Continuous Mechanical Oil Extraction

The screw-press design supports continuous feeding and pressing, making it suitable for commercial oil processing operations.

Designed for Palm Kernel Processing

Palm kernels have different physical characteristics from many conventional oilseeds. The pressing system should therefore be selected according to kernel properties, pretreatment conditions and target capacity.

Flexible Plant Integration

The expeller can be incorporated into a broader palm kernel oil processing system, including:

• Palm kernel cleaning equipment
• Kernel cracker or breaker
• Flaking machine
• Cooker or conditioner
• Palm kernel oil expeller
• Oil clarification equipment
• Filter press or filtration system
• Crude palm kernel oil tank
• Palm kernel cake handling system

Customized Processing Solutions

Different projects have different requirements.

Instead of offering a one-size-fits-all configuration, we can develop a suitable palm kernel oil processing solution according to:

• Raw material characteristics
• Required processing capacity
• Available factory space
• Desired degree of automation
• Local utility conditions
• Oil quality requirements
• Investment budget
• Future expansion plans

Palm Kernel Oil Expeller for Different Project Sizes

A palm kernel oil extraction project should not be designed only around the expeller itself.

The capacity of the complete processing line, pretreatment equipment, conveyors, filtration system, storage tanks and auxiliary systems should be considered together.

For this reason, our engineers can help select and configure the appropriate equipment according to your planned production capacity.

Planning a palm kernel oil plant? Send us your target capacity and raw material information for a customized equipment proposal.

Palm Kernel Oil Expeller vs. Small Oil Press

A small oil press may be suitable for laboratory testing, small-scale production or decentralized processing.

For a commercial palm kernel oil project, however, the requirements are usually different.

An industrial palm kernel oil expeller can be incorporated into a complete production line with:

• Continuous material feeding
• Mechanical pressing
• Oil collection
• Oil clarification
• Filtration
• Cake discharge
• Material conveying
• Automated or semi-automated operation

This integrated approach can make the equipment easier to manage as part of a larger commercial oil processing plant.

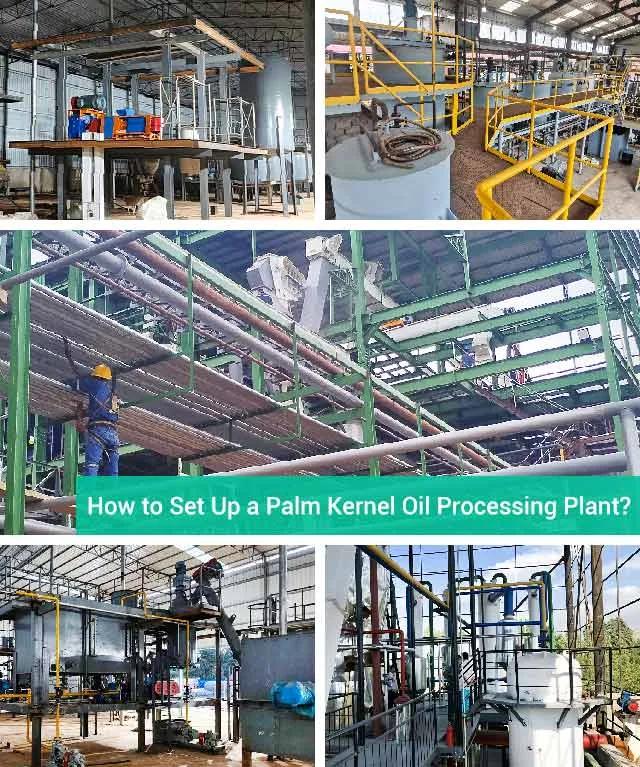

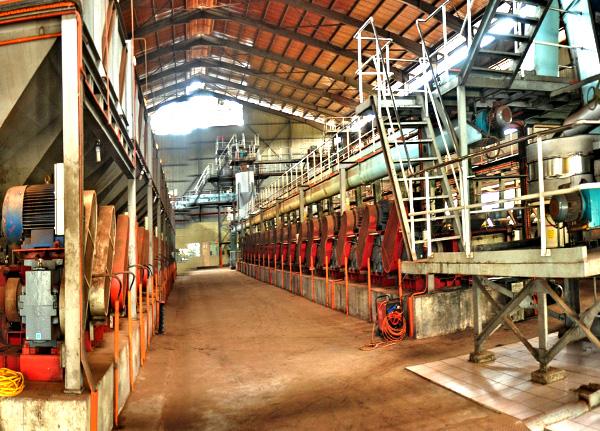

Palm Kernel Oil Processing Plant Solution

For investors planning a complete palm kernel oil factory, the expeller is only one part of the production system.

A typical project may include the following sections:

Raw Material Receiving

↓

Cleaning & Storage

↓

Kernel Preparation

↓

Flaking & Conditioning

↓

Palm Kernel Oil Expelling

↓

Oil Clarification & Filtration

↓

Crude Palm Kernel Oil Storage

↓

Optional Palm Kernel Oil Refining

The final process design depends on the customer’s production objectives and the required final oil quality.

Why Choose a Complete Palm Kernel Oil Processing Solution?

Purchasing individual machines from different suppliers can create challenges in equipment matching, process coordination and installation.

A complete engineering solution allows the main processing sections to be designed as an integrated system.

Our service can cover:

Process Design

We develop the process flow according to your raw material and production requirements.

Equipment Selection

The main machines and auxiliary equipment are selected according to the planned capacity and process configuration.

Plant Layout

Equipment arrangement can be designed around your available factory space and material flow.

Installation Support

Technical guidance can be provided during equipment installation and commissioning.

Technical Consultation

Our engineers can discuss your raw material, target capacity and production objectives before recommending the appropriate configuration.

Palm Kernel Oil Expeller Applications

The palm kernel oil expeller can be used for projects such as:

• Palm kernel oil mills
• Commercial palm kernel processing plants
• Integrated palm oil processing facilities
• Vegetable oil processing projects
• Palm kernel oil production projects
• Oilseed processing businesses
• Industrial oil extraction facilities

The machine can also be incorporated into a larger palm kernel oil production line where the crude palm kernel oil is subsequently refined for different applications.

Palm Kernel Oil and Palm Kernel Cake

The pressing process produces two main streams:

Crude Palm Kernel Oil

The extracted oil can be collected, clarified and filtered before storage or further refining.

Palm Kernel Cake

The solid material discharged from the expeller can be collected separately and handled as a valuable by-product.

This means a well-designed palm kernel processing project can make use of both the oil and solid output streams.

How to Select the Right Palm Kernel Oil Expeller

Before purchasing a palm kernel oil press machine, it is important to evaluate more than the advertised machine capacity.

Consider the following factors:

1. Raw Material

What type of palm kernels will be processed?

2. Processing Capacity

How many tons of raw material do you plan to process per day?

3. Pretreatment

Will the kernels be cleaned, broken, flaked and conditioned before pressing?

4. Oil Recovery Requirements

What are your expectations for oil recovery and residual oil in the cake?

5. Automation Level

Do you require manual, semi-automatic or automated operation?

6. Downstream Processing

Will the crude palm kernel oil be sold directly or sent to a refining section?

7. Factory Conditions

What are the available power, steam, water, space and other utilities?

These factors help determine the appropriate expeller configuration and the supporting equipment required for the complete production line.

Get a Palm Kernel Oil Expeller Designed for Your Project

Choosing the right palm kernel oil expeller is an important step, but the best equipment configuration depends on the complete production process.

If you are planning to build or expand a palm kernel oil processing plant, our engineers can evaluate your project requirements and recommend a suitable processing configuration.

Send us the following information:

• Required capacity
• Palm kernel availability
• Desired oil production
• Factory location
• Expected automation level
• Whether oil refining is required

We can then prepare a customized palm kernel oil extraction solution, including the recommended process flow, equipment configuration and technical proposal.

Request a Customized Palm Kernel Oil Expeller Solution

Tell us your processing capacity and project requirements today.

Get Equipment Proposal →

Contact Our Oil Processing Engineers →

Frequently Asked Questions

What is a palm kernel oil expeller?

A palm kernel oil expeller is an industrial screw press used to mechanically extract oil from palm kernels. It can operate as part of a complete palm kernel oil extraction line.

How does a palm kernel oil press machine work?

Prepared palm kernels are fed into a screw pressing chamber. Mechanical pressure generated by the rotating screw separates the oil from the solid kernel material. The extracted crude oil and palm kernel cake are discharged separately.

Do palm kernels need pretreatment before pressing?

Pretreatment requirements depend on the raw material and process design. Cleaning, size reduction, flaking and conditioning may be incorporated to prepare the kernels for efficient mechanical pressing.

Can the palm kernel oil expeller be used in a complete production line?

Yes. The expeller can be integrated with kernel cleaning, preparation, conditioning, oil clarification, filtration, storage and other equipment to form a complete palm kernel oil processing system.

Can you design a palm kernel oil processing plant?

Yes. A complete solution can be developed according to the required capacity, raw material characteristics, factory conditions, automation requirements and downstream oil processing requirements.

How can I get a palm kernel oil expeller quotation?

Send us your target processing capacity, raw material information and project requirements. Our engineers can recommend a suitable equipment configuration and prepare a customized proposal.
