Rotocel Extractor

Rotocel Extractor


  • Huatai is The Largest Oil Processing Equipment Factory in China
  • We Can undertake large-scale EPC projects from A to Z

If you are interested in our Rotocel Extractor, please leave us a message.

Rotocel extractor

Rotocel extractor machine is a continuous oil extraction equipment and widely Suitable for all kinds of vegetable oil extraction. Its main characteristic is high bed of oilseeds, mixed oil concentration is high, simple structure, convenient operation and maintenance.

Product Application:  Rotocel extractor is the most widely used one. It is suitable for all kinds of oil crops.

Product Features: Rotocel extractor has reliable operation, unique rotor balance design, low power consumption and high concentration of miscella, good self filtration of fixed material layer, less meal power in mixed oil and good extraction effection.

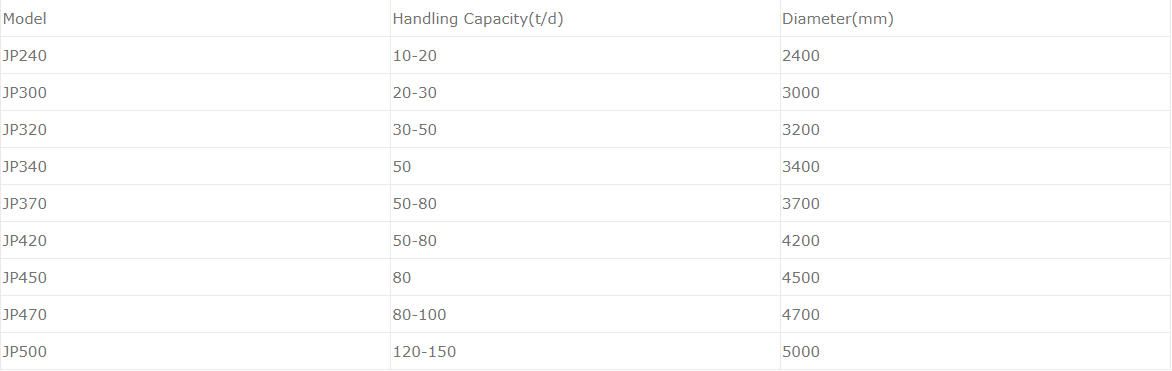

Technical data

Rotocel extractor is a continuous combined type oil extractor. The rotor consisting of material cells rotates around the main shaft for one cycle to complete the extraction process. Rotocel extractor is the most widely used edible oil extraction equipment, suitable for small and medium oil extraction plant. Rotocel extractor is suitalbe for the oil extraction of peanut, rapeseed, cottonseed, sunflower seeds, sesame, corn germ, camellia seed, flax seed, castor seed, soybean, rice bran, saffower seed, palm fruit cake, palm kernel cake, copra, grapeseeds, evening primrose seed etc. The extractor is especially suitable for extracton of various pre-pressed oil cakes. Rotocel extractor is also used for extracting capsicum red pigment.

Advantages of Rotocel Extractor

1. Simple structure, easy operation, and maintenance.
2. Adopt stainless steel stationary grid, with an additional horizontal grid to prevent backflow of thick miscella into the material cells. The grid gap has a self-cleaning effect and is free of clogging.
3. Adopt gear-rack drive, unique rotor balancing design, low ratating speed, small power comsumption, stable and reliable operation without noise, low failure rate.
4. The feed system automatically adjusts the rotating speed of the closed-air aspirator and main engine depending on the incoming amount, so that the materials in the buffer bin can maintain a certain level, which is good for the formation of negative micro-pressure inside the extractor and reducing the leakage of solvent vapor.
5. Adopt advanced miscella circulation design, good for reducing the input of fresh solvent, reducing residue oil in meals, increasing miscella concentration, and saving energy through reducing the amount of evaporation.
6. High material layer, good immersion effect, good filtration effect, low fines content in the miscella, improving the quality of crude oil and reducing the scaling of evaporation system.

We have more than 200 running oil processing plant around the world and have extensive experience in oil mill construction. If you are interested in our Rotocel Extractor, please leave us a message.
