Drag chain extractor is used for extracting oil of a variety of oilseeds, structure characteristic is to separate the superstratum and substratum of ring structure merged into a unified box-type structure, permeability is good, the residual oil rate can reach 0.6-0.8%.
Drag chain extractor or towline extractor is a continuous ommersion type extractor. The drag chain drags the materials to run for one cycle in the extractor to cmplete the extraction process. Towline extractor is suitable for large-scale oil extraction plant. It is suitable for direct extraction of soybean, rice bran, etc, and pre-pressing extraction of cottonseed, rapeseeds, sesame, camellia seed, tung seed, sunflower seeds, corn germ, grape seed, etc, as well as alcohol extraction of protein.

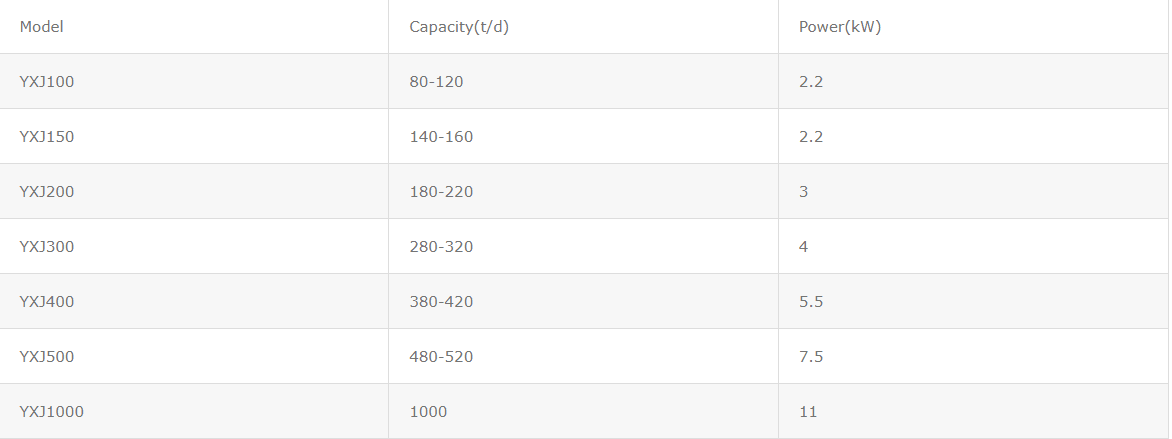

Drag chain extractor technical data
Drag chain extractor advantages
1. Towline extractor has strong adaptability to raw materials. Especially suitable for oilseeds with high oil content and large fines content, having better extraction effect for common oilseeds.
2. Advanced technology, simple structure, easy operation, low power comsuption, stable and reliable operation, low filture rate.
3. The materials are segmented into several independent units on the bed, effectively prevents various grades of miscella from flowing between the material layers, ensuring the concentration gradient between the percolation segements.
4. Each material cell forms an immersion area, achieving better immersion effect.
5. The materials are fully turned in the towline extractor, good permeability, uniform extraction, low residue oil rate below 0.8%.
The transmission structure of chain extractor consists of three points, that’s the driving sprocket-wheel, the driven sprocket-wheel, and the tension sprocket-wheel. Due to the large horizontal distance between the tensioning wheel and the driving wheel, the transmission reliability of the chain and the driving sprocket is formed.
Technical Specifications
Engineered for efficiency, built for performance.
Working Principle
Immersion
Continuous immersion type; each material cell forms an immersion area.
Permeability
Good permeability for uniform extraction.
Discharge
Wet meal to DTDC.
Why Choose This Equipment
Thorough extraction
Material turns from the upper layer to the lower layer for uniform and thorough extraction.
Short extraction time
Short extraction time reduces solvent content in wet meal.
Low residual oil
Low residual oil in meal improves oil yield.
Flexible drive
Main and driven shafts are self-aligning; can be driven by sprocket or hydraulic transmission.
Applicable Materials
Oilseeds
Large-scale solvent extraction of soybean, rapeseed, cottonseed, sunflower, rice bran, etc.
Capacity range
Suitable for 500–4,000 t/d extraction plants.
Frequently Asked Questions
What is the difference between chain and loop extractors?
Chain extractors use a drag chain to move material through the extraction bed, while loop extractors use a loop-type basket.
What is the largest model available?
HTTL4000 with a capacity of 4,000 t/d.
How is the extractor driven?
The main and driven shafts can be driven by sprocket or hydraulic transmission.
